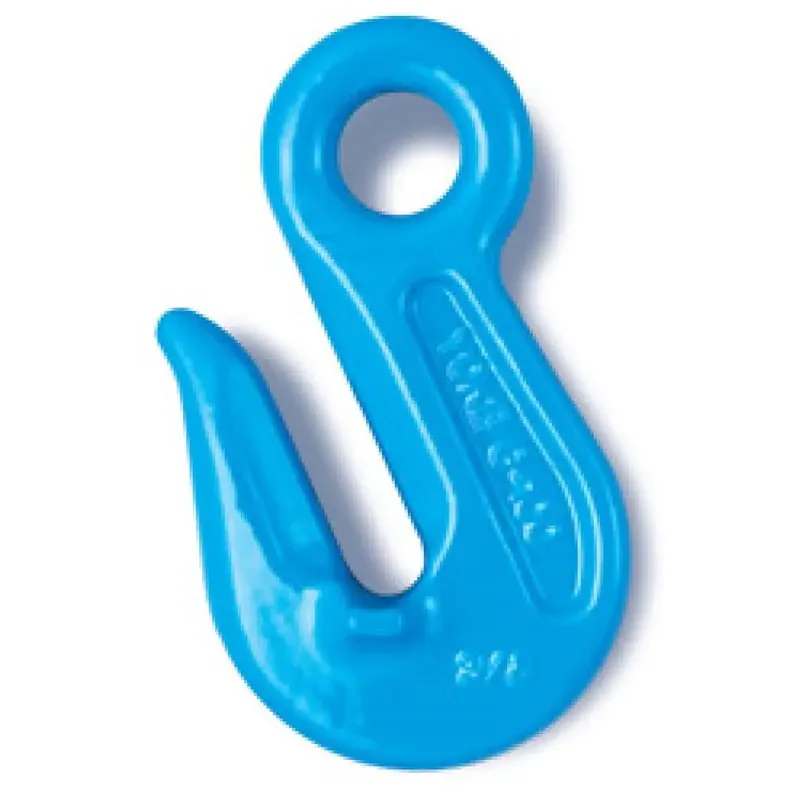

YOKE® Grade 10 Eye Grab Hook
YOKE® Grade 10 Eye Grab Hook
Grade 100 Eye Grab Hook
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G800 products.
• Manufactured in accordance with DIN5692, EN1677-1, ASTM A952/A 952M.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400° C.
• Not for use with Omega Link.
• Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation.
Additional information

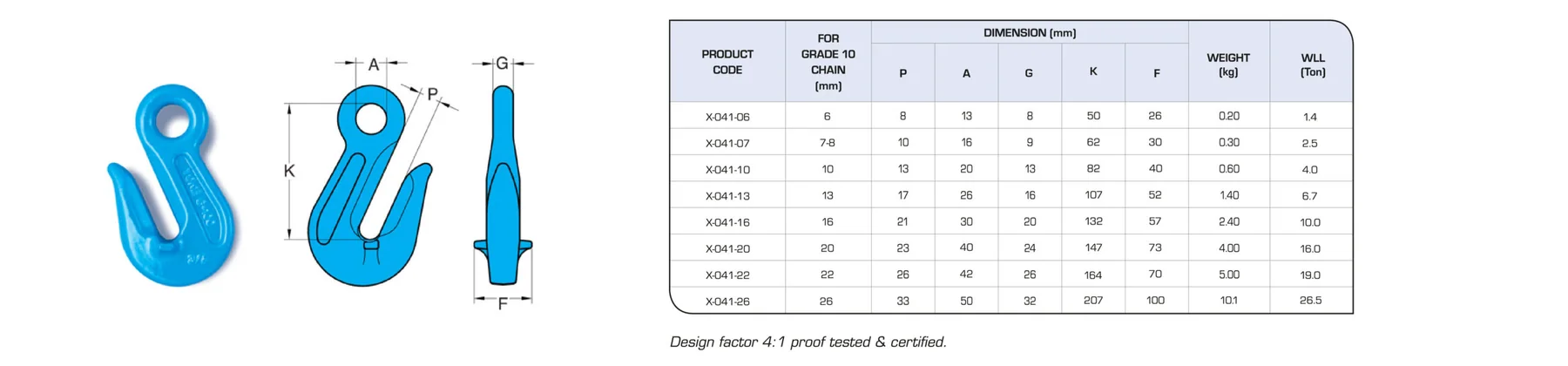

| Working Load Limit | 1.4 Ton, 2.5 Ton, 4.0 Ton, 6.7 Ton, 10.0 Ton, 16.0 Ton, 19.0 Ton, 26.5 Ton |
|---|
