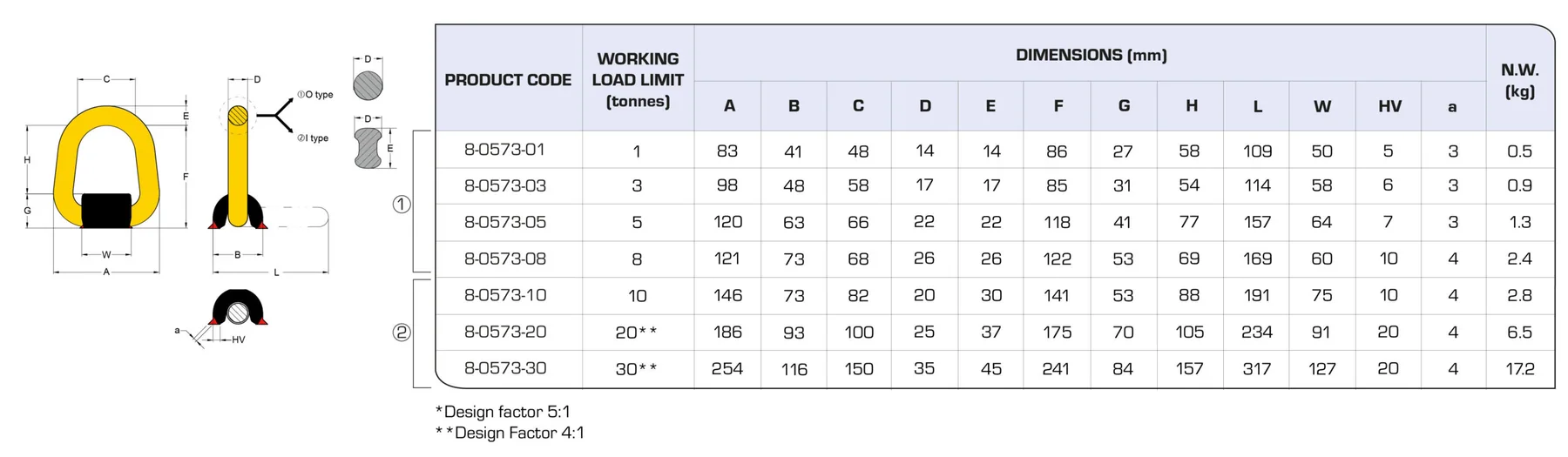

Yoke® Classic Weld-On Point

YOKE CLASSIC WELD ON POINT
• Pivots through 180°
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• WLL forged onto each product for quick and easy identification.
• Lugs designed to assist the welding process.
• Never apply load except in the same direction with the pivot direction.
