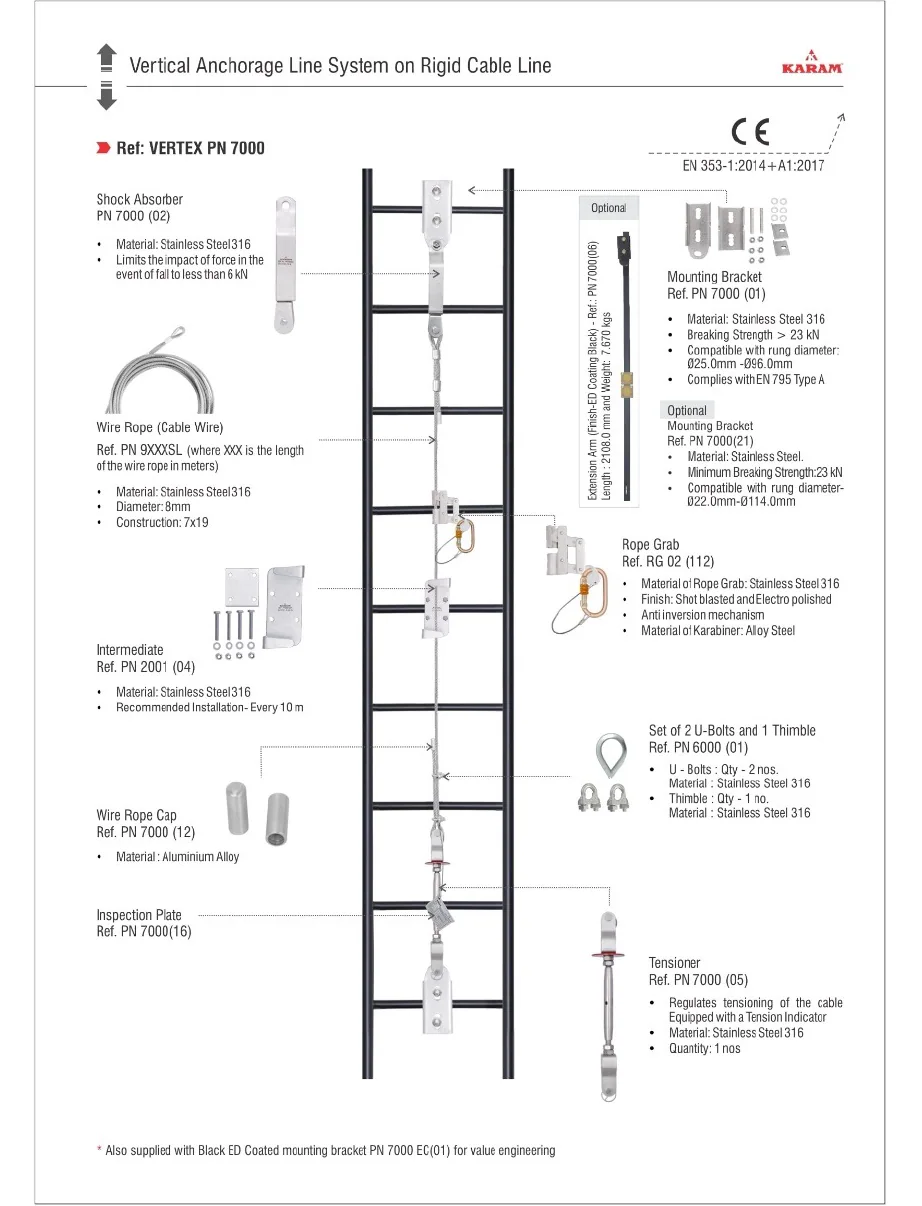

Vertical Lifeline System PN 7000
Certifying to the norms EN 353-1:2014+A1:2017, this vertical fall arrest system is an integrated solution to arrest the fall of a user who has to constantly climb up and down a ladder. The unique feature of this system is a permanently installed stainless steel shock absorber at the top of the line which offers a distinct advantage over the textile absorber used in PN6000 system in terms of UV degradation and resistance to harsh climate conditions.
Click below to view all components >>
Shock Absorber PN 7000 (02)
- Material: Stainless Steel 316
- Limits the impact of force in the event of fall to less than 6 kN
Mounting Bracket Ref. PN 7000 (01)
- Material: Stainless Steel 316
- Breaking Strength > 23 kN
- Complies with EN 795 Type A
Wire Rope (Cable Wire) Ref. PN 9XXXSL (Where XXX is the Length of the wire rope in meters)
- Material: Stainless Steel 316
- Diameter: 8mm
- Construction: 7×19
Rope Grab Ref. RG 02 (112)
- Material of Rope Grab: Stainless Steel 316
- Material of Karabiner: Alloy Steel
- Anti inversion mechanism
Intermediate Ref. PN 2001 (04)
- Material: Stainless Steel 316
- Recommended Installation- Every 10 m
Wire Rope Cap Ref. PN 7000 (12)
- Material : Aluminium Alloy
Inspection Plate Ref. PN 7000(16)
Set of 2 U-Bolts & 1 Thimble Ref. PN 6000 (01)
- U – Bolts : Qty – 2 nos.
Material : Stainless Steel 316 - Thimble : Qty – 1 no.
Material : Stainless Steel 316
Tensioner Ref. PN 7000 (05)
- Regulates tensioning of the cable. Equipped with a Tension Indicator
- Material: Stainless Steel 316.
- Quantity: 1 nos.
