Simplex® Mechanical Reel Jacks
The Mechanical Reel Jacks are designed with rugged use in mind. The ratchet designed jacks are safe, strong, and easy to use when lifting reels.
FEATURES
• 4 Models
• Double-Lever Sockets
• Multiple-Tooth Pawls for Strength & Safety
• Forged Alloy Steel, Heat-Treated Components
• Adjustable Spring Links
• Plated Springs to Resist Corrosion
• Precision Machining Throughout
• Steel Lever Bars Sold Separately
• Tough Hardwood Bases Laminated for Extra Strength
Capacity Range: 5 – 20 tons
Stroke Range: 241.30 – 355.60 mm
Minimum Height Range: 533.40 – 876.30 mm

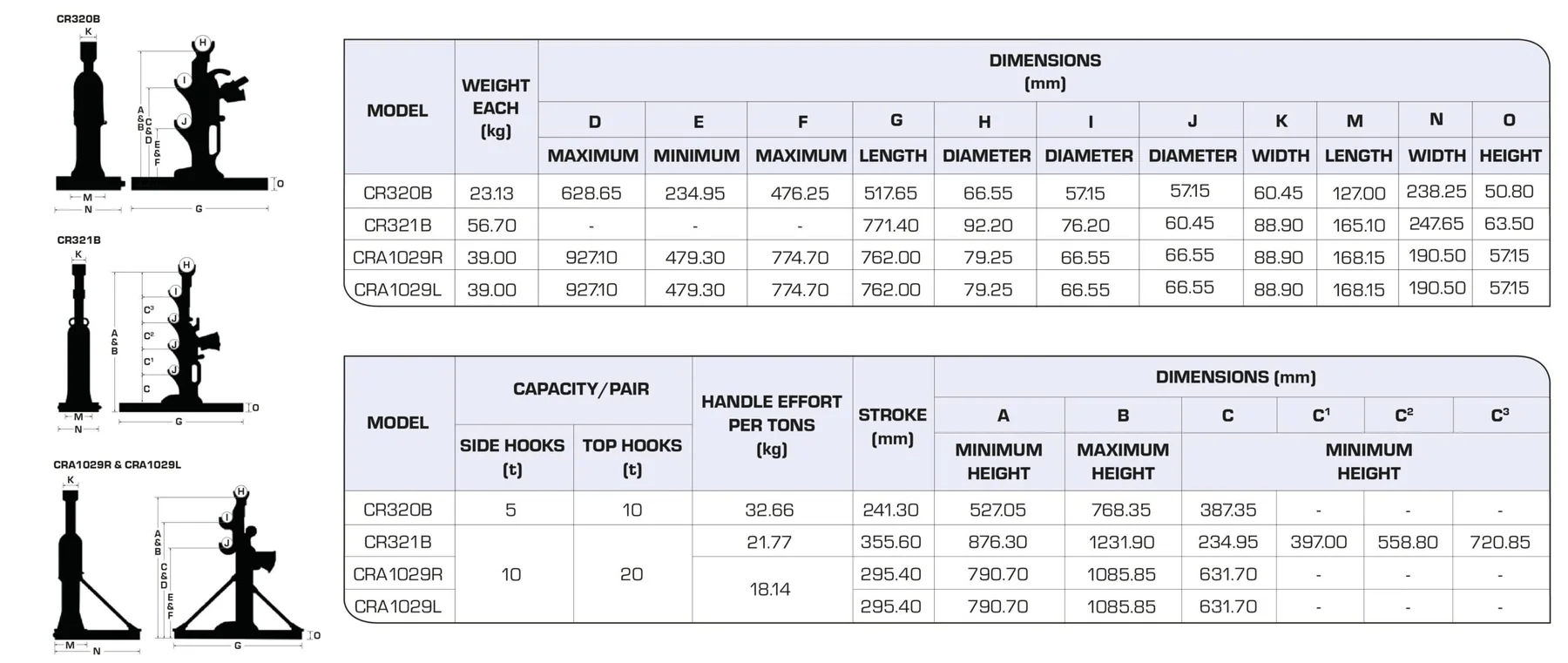

MODEL 320B
With three hooks; top fits up to 64mm spindles; side hooks fit up to 50mm spindles.
MODEL 321B
With five hooks; top fits up to 90mm spindles, next hook down fits up to 75mm spindles, and lowest three fit up to 60mm spindles. This model is recommended for use on firm surfaces.
MODEL A1029
The A1029 has a light weight aluminium alloy housing and three hooks; top fits up to 75mm spindles, side hooks fit up to 60mm spindles. Equipped with right or left-handed t-base, supported
by three adjustable steel rods to provide a sturdy, non-rocking foundation for outside use. Caps swivel for easy reel mounting. Steel lever bars are ordered separately.
