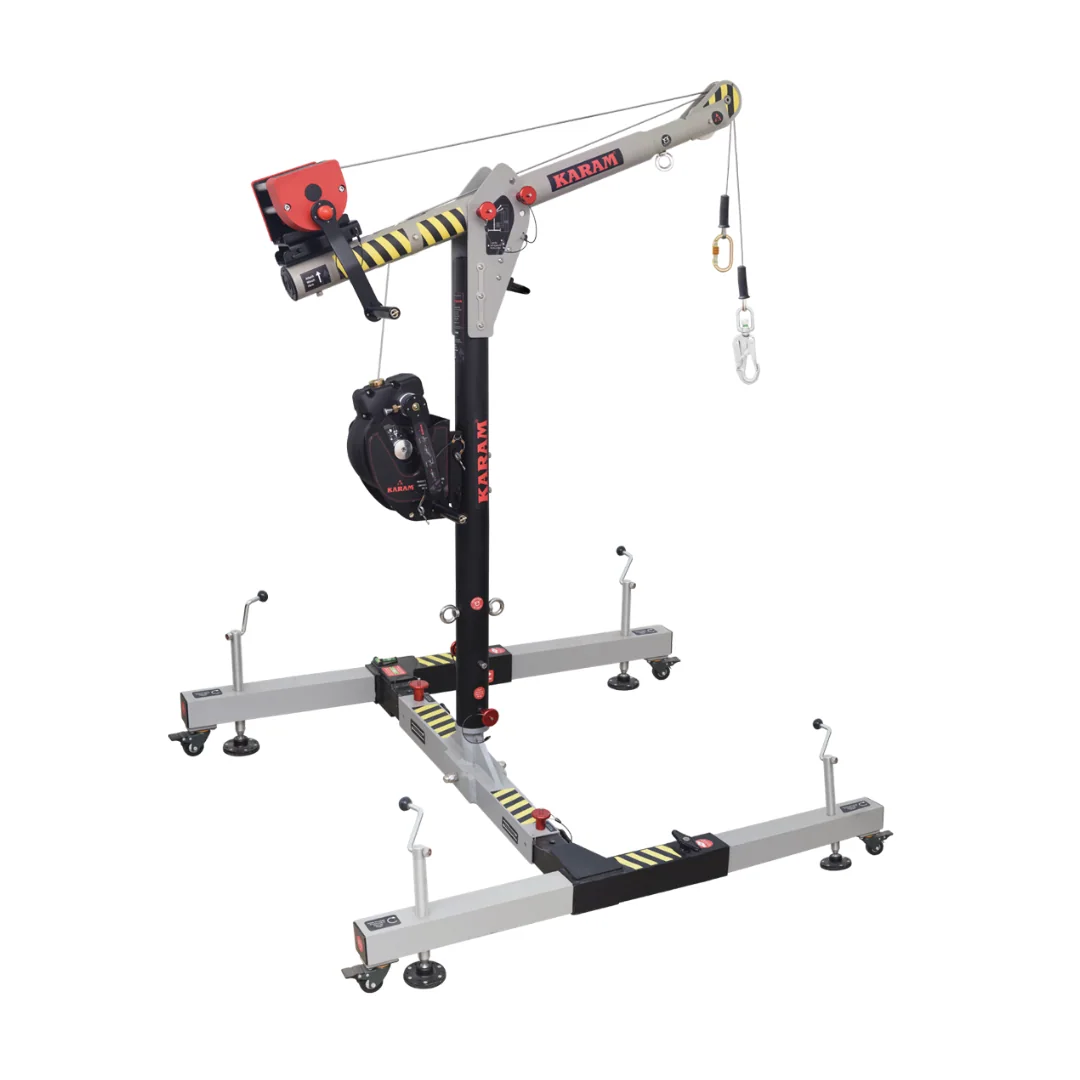

Davit Arm – DA 01

KARAM Davit Arm is specially designed for confined space entry/rescue applications. It is ideal for providing portable, safe overhead anchorage in large confined areas like manholes, storage tanks etc. It also allows the user to adjust the height accordingly for overhead clearance restrictions.

• The system DA01 breaks down into five components for easy storage, transport and set-up. No tools are required for assembly
• The modular design allows the use of various fixed and portable bases and an optional mast with extensions
• Cantilever arm comes with 3 adjustment positions for the user to adjust the height as per the requirement
• Comes with foldable legs for easy transportation and installation purpose
• Comes with multi anchorage point for rescue purpose
• Comes with inbuilt swivel feature, davit column assembly can be rotated even under load upto 360° by removing the locking pins provided to lock column and H-base
• Spirit leveller in base assembly to check the accuracy of surface level and to make the davit balanced at time of installation
• Comes with 2 pre-installed lower mounting bracket assembly [DA01(19)] for easy installation of winch and retrieval on davit
• Retrieval block can be mounted on column with bracket lower assembly by using universal mounting bracket SA17(26)
• Compatible with KARAM winch PN801(DP), PN817(DP), PN818(C)(DP), PN818(DP) and PN818SR(DP) and retrieval blocks PCGS20R(N) and PCGS30R.

Certification:

EN 795:2012 Type B, Atex 2014/34/EU and AS/NZS 5532:2013
