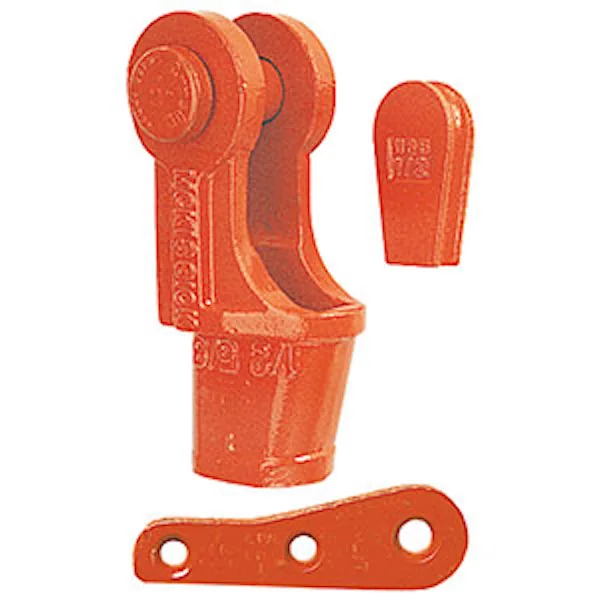

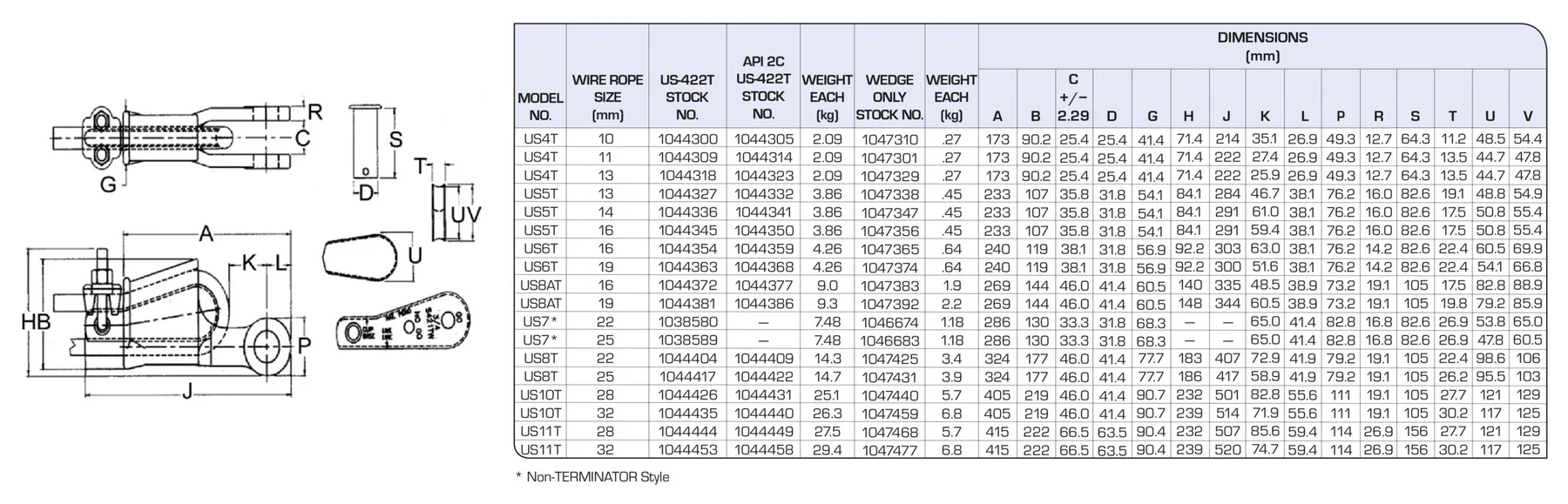

Crosby® US-422T Utility Wedge Socket

Crosby® US-422T Utility Wedge Socket
• Basket is cast steel and individually magnetic particle inspected
• Wedge socket terminations have an efficiency rating of 80% based on the catalogue strength of XXIP wire rope
• Wedges are colour coded for easy identification
• Blue – largest wire line size for socket
• Black – mid size wire line for socket
o 11mm on US4
o 14mm on US5
• Orange – smallest wire line size for socket
• Cast into each socket is the name “McKissick”, “Crosby” or “CG”, its model number and its wire line range
• By simply changing out the wedge, each socket can be utilized for various wire line sizes {Ensure correct wedge is used for wire rope size}
• Cast into each wedge is the model number of the socket and the wire line size for which the wedge is to be used
• Load pin is forged and headed on one end
• Incorporates Crosby’s patented QUICK-CHECK® “Go” and “No-Go” feature cast into the wedge. The proper size rope is determined when the following criteria are met:
o The wire rope should pass thru the “Go” hole in the wedge
o The wire rope should NOT pass thru the “No-Go” hole in the wedge
• US-422T wedge sockets contain a hammer pad (lip) to assist in proper securement of termination
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these sockets meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
• UWO-422T Wedges are to be used only with the US-422T Wedge Socket Assemblies

G-2150 Bolt Type Chain Shackle
• Forged, Quenched & Tempered, will alloy pins.
• Working Load Limit and Grade 6 permanently shown on every shackle.
• Hot-dip galvanised. 85t shackles have hot-dip galvanised bows and the bolts are Dimetcoted and painted red.
• Sizes 3/8 inch and below are mechanically galvanised.
• Fatigue rated at 20,000 cycles at 1.5 times the Working Load Limit.
• Approved for use at -40°C (-40° F) to 204°C (400° F).
• Meets or exceeds all requirements of ASME B30.26
• Sizes ½t – 25t meet the performance requirements of EN13889:2003.
• Shackles 55t and smaller can be furnished proof tested with certificated to designated standards.
• Shackles can meet Charpy impact testing of 42 joules min. ave. at -20°C (-4°F), upon special request.
• Look for the Red Pin® …the mark of the genuine Crosby quality.
•
•
• Approved for use at -40°C (-40° F) to 204°C (400° F)
• Shackles can meet Charpy impact testing of 42 joules min. ave. at -20°C (-4°F), upon special request.
• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting appliances available, on special request and may incur additional costs.
• Meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 3.
• Look for the Red Pin® …the mark of the genuine Crosby quality.

G-2130 Bolt Type Anchor Shackle
• Working Load Limit and Grade 6 permanently shown on every shackle.
• Forged, Quenched & Tempered, will alloy pins.
• Hot-dip galvanised. 85t, 120t and 150t shackles are all hot dip galvanised bows and the bolts are Dimetcoted and painted red.
• Sizes 3/8 inch and below are mechanically galvanised.
• Fatigue rated at 20,000 cycles at 1.5 times the Working Load Limit.
• Approved for use at -40°C (-40° F) to 204°C (400° F)
• Meets or exceeds all requirements of ASME B30.26
• Shackles 85tins and larger are individually proof tested to 2.0 times the working load limit.
• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting appliances available, on special request and may incur additional costs.
• 3.1 Certification as standard available for Charpy and statistical proof test from 3.25t up to 25t to DNV2.7-1 and EN13889 i
• Shackles can meet charpy requirements of 42 joules min. ave. at -20°C (-4°F), upon special request.
• Meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 3.
• Look for the Red Pin® …the mark of the genuine Crosby quality.
•
•
• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting appliances available, on special request and may incur additional costs.
• Meet the performance requirements of Federal Specification RR-C-271H, Tye IVA, Grade A, Class 2.
• Look for the Red Pin® …the mark of the genuine Crosby quality.

•
• Shackles can be furnished proof tested with certificated to designated standards.
•
• Increase in shackle now radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble.
• Increases useable sling strength a minimum of 115% and improves life of wire rope slings.
• Can be used to connect synthetic web slings, synthetic round slings or wire rope slings.
• All sizes Quenched and Tempered for maximum strength
• Forged alloy steel from 75 through 300 metric tons
• Proof tested as follows:
o 75 metric tons and 200 through 300 metric tons: 2 x Working Load Limit
o 125 metric tons : 1.6 x Working Load Limit
• All ratings are in metric tons, embossed on side of bow
• G-2160E, (75t and larger), bows are furnished Dimetcoted, Pins are Dimetcoted, then painted red.
• Approved for use at -40°C (-40° F) to 204°C (400° F)
• Bow and bolt are certified to meet Charpy impact testing of 42 joules min. ave. at -20°C (-4°F)
• All 2160E shackles are individually proof tested and magnetic particle inspected.
• Type approved and certification to DNV Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements.
o Serialization/Identification
o Material Testing (Physical/Chemical/Charpy)
o Proof Testing

• G-2160, (7t through 55t) are hot dip galvanised and pins are painted red.
• G-2160, (75t and larger), bows are furnished Dimetcoted, Pins are Dimetcoted, then painted red.

Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
Look for the Red Pin® …the mark of the genuine Crosby quality
Shackles have DNV Type Approval to Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements. Databook is provided that includes required documents
Serialization/Identification
Material Testing (Physical/Chemical/Charpy)
Proof Testing
Shackles are RFID EQUIPPED
All 2160E shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order

• Manufactured from Alloy Steel
• 100% Proof Tested to 2.5 times the Working Load Limit
• 100% Magnetic Particle Inspected
• Fatigue Tested to 20,000 cycles at 1.5 times the Working Load Limit
• Compliant with EN 1677-4 / SANS/ISO 16798
• Factor of Safety 4:1
• Supplied in a Yellow Powder Coated Finish
• Traceability markings

IMAGES

HREF = PDF
SRC = Image

Crosby A-347 Welded Master Link Assembly
• Alloy steel, Quenched and Tempered
• Individually proof tested to 2.5 times Working Load Limit, with certification.
• Design Factor 5:1
• Proof Tested with 70% inside width special fixtures sized to prevent localised point loading per EN1677.
• Each main link has a Product Identification Code for material traceability, Grade, CE, chain size and the “CG” (Crosby Group). Each sublink is marked with a traceability code.
• A-347 master links are type approved to DNV Certification Notes 2.7-1 – Offshore Containers. These Crosby master links are 100% proof tested. Every batch is impact tested. The tests are conducted by Crosby.
• Engineered flat for use with S-1325A Chain Coupler Link.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Meets or exceeds all requirements for ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these links meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
• Available only in EMEA.

• Suitable for use with Grade 100 and Grade 80 chain.

• Hook can be tip loaded at the reduced working load limit, see below.
• Operator must ensure that the load is retained properly in the hook.
•
• For use with wire rope. Suitable for use with Grade 100 and Grade 80 chain. Working load limit need to be de-rated to achieve a 5:1 design factor.
• Forged Alloy, Quenched and Tempered
• Each hook has a Product Identification Code for material traceability along with the size and the name Crosby.
• 25% Stronger than Grade 80.
• Eye Sling hooks incorporate QUIC-CHECK® deformation and angle indicators.
• When secured with the proper cotter pin through the hole in the tip of the hook meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) for personnel lifting.
• Individually proof tested at 2.5 times Working Load Limit, with certification.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
•
•
• Hoist hooks incorporate QUIC-CHECK® deformation and angle indicators.
• Low profile hook tip.
• New integrated latch (S-4320/S-4339) meets the world standard for lifting
o Heavy Duty stamped latch interlocks with the hook tip.
o High cycle, long life spring
o When secured with the proper cotter pin through the hole in the tip of the hook meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) for personnel lifting.
• Suitable for use with Grade 100 and Grade 80 chain.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.

o
• Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
o Easy to operate with enlarged thumb access
• Positive Lock Latch is self-locking when hook is loaded
• The Shur-Loc® hook, if properly installed, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Rated for both wire rope and for use with Grade 100 and Grade 80 chain.
•
• Suitable for use with Grade 100 and Grade 80 chain.
• Eye style is designed with engineered flat to connect to S-1325 chain coupler.
•
• The use of the A-1348 Cradle Grab Hook will allow 100% of the chain sling capacity. When used to hook back to chain leg to form a chocker, the angle of the choke must be 120 degrees or greater. When used as a chain shortener, minimise twist of chain and ensure chain is fully engaged in hook.
• Innovative cradle design allows for 100% efficiency of Grade 100 chain.
• Individually proof tested at 2.5 times Working Load Limit, with certification.
• Suitable for use with Grade 100 and Grade 80 chain.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Eye style is designed with engineerd flat to connect to S-1325 chain coupler.
•

• Designed to connect Grade 100 chain fittings produced with engineered flay to Grade 100 chain.
• Suitable for use with Grade 100 and Grade 80 chain.
• Individually proof tested at 2.5 times Working Load Limit, with certification.
• Locking system that provides for simple assemble and disassembly – no special tools needed.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Spring loaded chain locking system keeps chain in place under slack conditions
• The use of S-131N Chain Shortener will allow 100% of the chain sling capacity
•

• The Crosby Eliminator® combines selected features and functionality of a master link, connecting link, grab hook and adjuster legs to provide you with one fitting that is suitable to applications that require an adjustable length chain sling.
• Innovative two piece design allows for maximum flexibility.

• The Crosby Eliminator, with a properly installed and locked latch pin can be used for personnel lifting applications and meets the intent of the OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B)
•
• Engineered to accommodate optional locking pins that can be inserted to lock the shortened chain legs into place.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Use the A-1361 and A-1362 in combination to make 3 leg chain slings.
• Load pin assembly instructions available.
• Design Factor of 5 to 1.
• Proof Tested with 70% inside width special fixtures sized to prevent localised point loading per EN1677-4.
• Each main link is marked with Product Identification Code (PIC) for material traceability, Grade, CE, Chain size and the “CG” (Crosby Group).
• A-1346 master links are type approved to DNV Certification.
• Engineered Flat for use with S-1325A coupler link.
• Meets or exceeds all requirements of ASME B30.26
