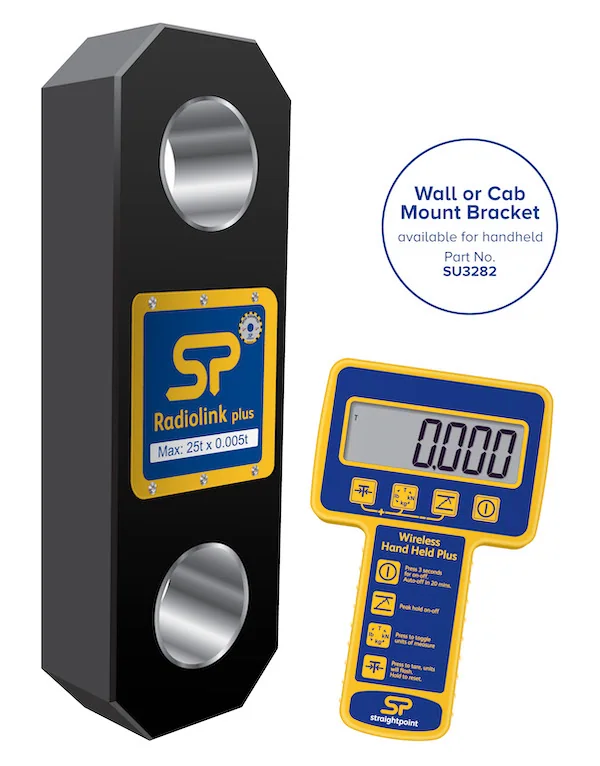

Crosby® Straightpoint Load Cells

Radiolink plus is designed to be rigged with Crosby standard shackles – DNV-GL type approved wireless tension load cell capable of weighing and dynamic load monitoring
in capacities from 1t to 300t – from stock with an ATEX and IECEx version available for hazardous areas, zones 0,1&2.

ONLY FOR USE WITH SW-HHP HANDHELD

Two versions of the RLP are available:
– Long-range 2.4GHz version providing an industry-leading wireless range of 1000m or 3280ft to SP’s SW-HHP handheld or software options.
– Bluetooth output and can be connected to any smartphone running our free HHP app on iOS or Android at ranges up to 100m or 328ft.

Constructed from high-quality aerospace-grade aluminium it features an advanced internal design structure. This design not only provides the product with an unrivalled
strength to weight ratio but it also allows the use of a separate internal sealed enclosure providing the load cell’s electronic components with IP67 or NEMA6 environmental
protection even with the battery cover plate missing, making this industry-leading dynamometer even more suitable for use in the harshest environments.

The versatile RLP is supplied with an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz making it ideal for dynamic
force measurement.

Decades of development into this product include many stand out features such as SP’s unique strain gauging method that helps compensate for wire rope torque when
the Radiolink is loaded. The Radiolink plus tension load cell can also be used in combination with SP INSIGHT software high-speed wireless data logging software allowing
for simultaneous control, display and real-time data logging of up to 126 Straightpoint wireless load cells.

A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital
(RS232/485, Modbus RTU, and ASCII) outputs.
