British Steel – Tophat Shaft Guides

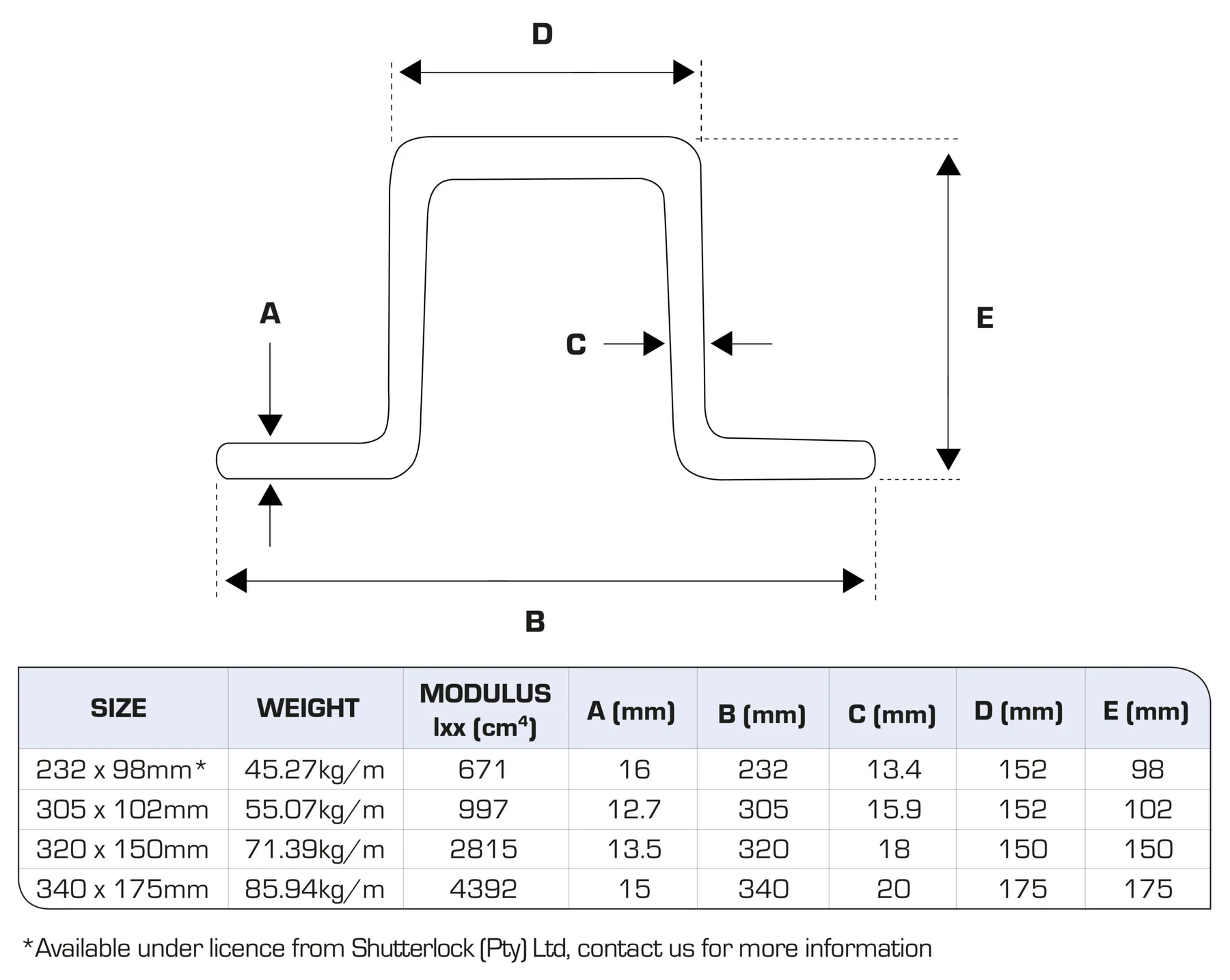

All 4 sizes offered with dimensions as follows:
• Straightness 5mm max over 12m length
• Twist 3mm max (typical < 1mm) • Shaft guides are available in lengths from 6-17m, with a cutting tolerance of +100/-0mm • Cold sawn lengths are also available to suit individual requirements, with a +0/-2mm cutting toleranceStandard steel grades: • EN 10025-2: 2004, S355JR+AR, S355J2+AR • SANS 50025-2: 2009, S355JR+AR, S355J2+AR • CSA G40.21-04: 2004, 300W, 350W, 350WT • AS/NZS 3679.1: Grade 350
